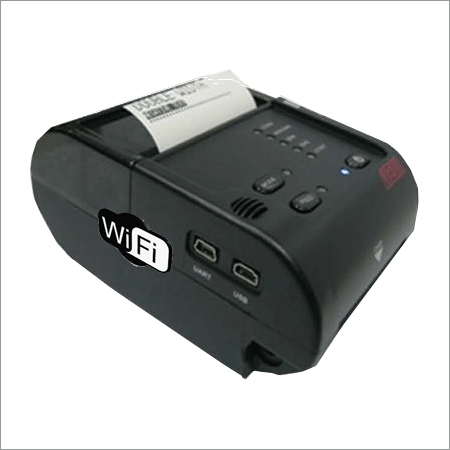

Wifi Thermal Printer

Wifi Thermal Printer
Wifi Thermal Printer
Product Code : 20
Product Description

Technical Specifications

Thermal Printer

65 - 150mm/sec, 203 dpi

Print Width – (Paper Size Support)

2 Inches (58mm) & 3 Inches (80mm)

Wireless Ethernet (WIFI) Interface

Range: 40 – 60 m

Wired Options for data transfer

USB

Rechargeable battery

1500 mAh / 7.4 V, charger (DC 9V / 2A)


Environment

Operating Temp

0 - 50 °c

Storage Temp

20 - 60°c

Characters/Fonts

Print Font

ANK: 12*26, Double Width, Double Height, Calibri, Tahoma, Verdana, Normal

Character per Line

32(2 inches) and 48 (2 Inches and 3 Inches)

Print

Printing Method

Thermal Line

Printing Speed

65 to 150 mm/sec

Resolution

8dots/mm, 384dots/line, 203 dpi

Effective Printing Width

58mm (2 Inches) / 80mm (3 Inches)

WIFI Features

Wi-Fi Mode

802.11 b/g/n protocol, Wi-Fi Direct (P2P), soft-AP and Integrated TCP/IP protocol stac

Wi-Fi Port

9100

Paper Specifications

Paper Type

Thermal paper

Paper Width

57.5mm / 80 mm

Paper Roll Diameter

MAX - 40.0mm (2 Inch), MAX – 45.0mm (3 Inch)

Roll Core Inner Diameter

13mm (2 Inch) – MIN

Barcodes

1-D:UPC-A UPC-E EAN-13 EAN-8 CODE39


Packaging

2inch Printer

3inch Printer

Net Weight

300gms

435gms

Dimensions (L x B x H)

120.5 x 84 x 50.5 mm

145.2 x 108 x 62 mm

Other Specifications

Memory

FLASH: 512 KB, RAM: 128 KB

Receive Buffer Size

16KB

OS Support

Android, IOS, Windows (Through Ethernet Sockets)

Sensor

Paper End Sensor

Battery Duration

6-8 Hrs. and 28 Hrs. (Stand By Time)

Battery Charging Time

3 to 5 Hrs.

Buttons & Indicators

Button: POWER, FEED and MODE
